PTO 1000 vs PTO 2000 Series: Mounting, Torque and When to Use Each
Quick answer: The 1000 series and 2000 series are two PTO families with different transmission mounting footprints and different torque ceilings. They are not interchangeable. Pick by the transmission PTO pad first, then by the torque your hydraulic pump demands. The 1000 series covers the medium-duty range; the 2000 series is the heavier, larger-pattern family for higher continuous load.
Where the two families sit in the range
PTO families evolve alongside transmissions. As gearboxes grew larger and vocational bodies demanded more hydraulic flow, PTO housings grew with them. That is the practical difference between a 1000-series and a 2000-series assembly: physical size, mounting footprint and the torque class the unit is engineered to carry.
1000 series vs 2000 series compared
| Specification | 1000 series | 2000 series |
|---|---|---|
| Mounting pattern | Standard medium-duty transmission PTO pad | Larger footprint pad used on heavy-duty transmissions |
| Torque class | Medium duty, suitable for typical tipper and utility pump packages | Higher continuous torque for large-displacement pumps and sustained circuits |
| Typical transmissions | Common manual and automated manual commercial gearboxes | Heavy-duty automatic and manual families, including full-automatic applications |
| Typical bodies | Tippers, light cranes, sweepers, small tankers | Refuse packers, heavy cranes, large tankers, high-flow multi-circuit systems |
| Output options | Direct mount and shaft output | Direct mount and shaft output, with larger pump interfaces |
| Interchangeable? | No | No |
Step 1 — Read the transmission PTO pad
Never select a PTO family from the vehicle model. Read the transmission data plate, then confirm the mounting pad on the gearbox: hole count, hole spacing and shaft interface. This single step eliminates most ordering errors.
Step 2 — Size by torque, not by habit
Torque requirement comes from the pump: displacement multiplied by working pressure, converted to rotating torque. Sustained circuits need more headroom than short-cycle ones because heat accumulation, not peak load, is what shortens PTO life.
| Duty pattern | Series that usually fits |
|---|---|
| Short engagement, cooling time between cycles | 1000 series |
| Long sustained engagement, high flow | 2000 series |
| Multi-circuit hydraulic system on one pump | 2000 series |
Step 3 — Confirm the output interface
Direct-mount units hold the pump on the PTO flange and are the cleanest installation. Shaft-output units drive a remote pump through a driveline. The output interface must match your pump flange, both in pattern and in drive type.
Step 4 — Check the installation envelope
The heavier family has a larger housing. Before committing, verify clearance to the chassis rail, crossmembers, exhaust and any aftertreatment components. Also confirm the transmission provides adequate lubrication at the PTO port.
Frequently asked questions
Can a 1000 series PTO replace a 2000 series unit?
No. The mounting footprint and torque capability differ. Using the lighter family where the heavier one is specified risks premature failure under sustained load.
Does the series number tell me the torque rating?
Not exactly. The series tells you the family — mounting, housing size and general torque class. The precise rating depends on the specific variant and its configuration, so always confirm against the exact model code.
Is an 8-bolt PTO always the heavier series?
Bolt count is a strong indicator of the pad family, and larger patterns generally go with heavier units, but bolt count alone is not a specification. Confirm hole spacing and shaft interface as well.
What if my transmission has no PTO opening?
Then a transmission-mounted PTO is not the answer. Check whether the transmission offers a PTO provision as an option, or whether the application should use an engine-driven or split-shaft arrangement instead.
How long should a PTO last?
Service life depends on duty cycle, oil condition, alignment and control usage. In sustained-duty fleets, oil condition and correct control interlocks matter as much as the unit's torque class.
Browse the range

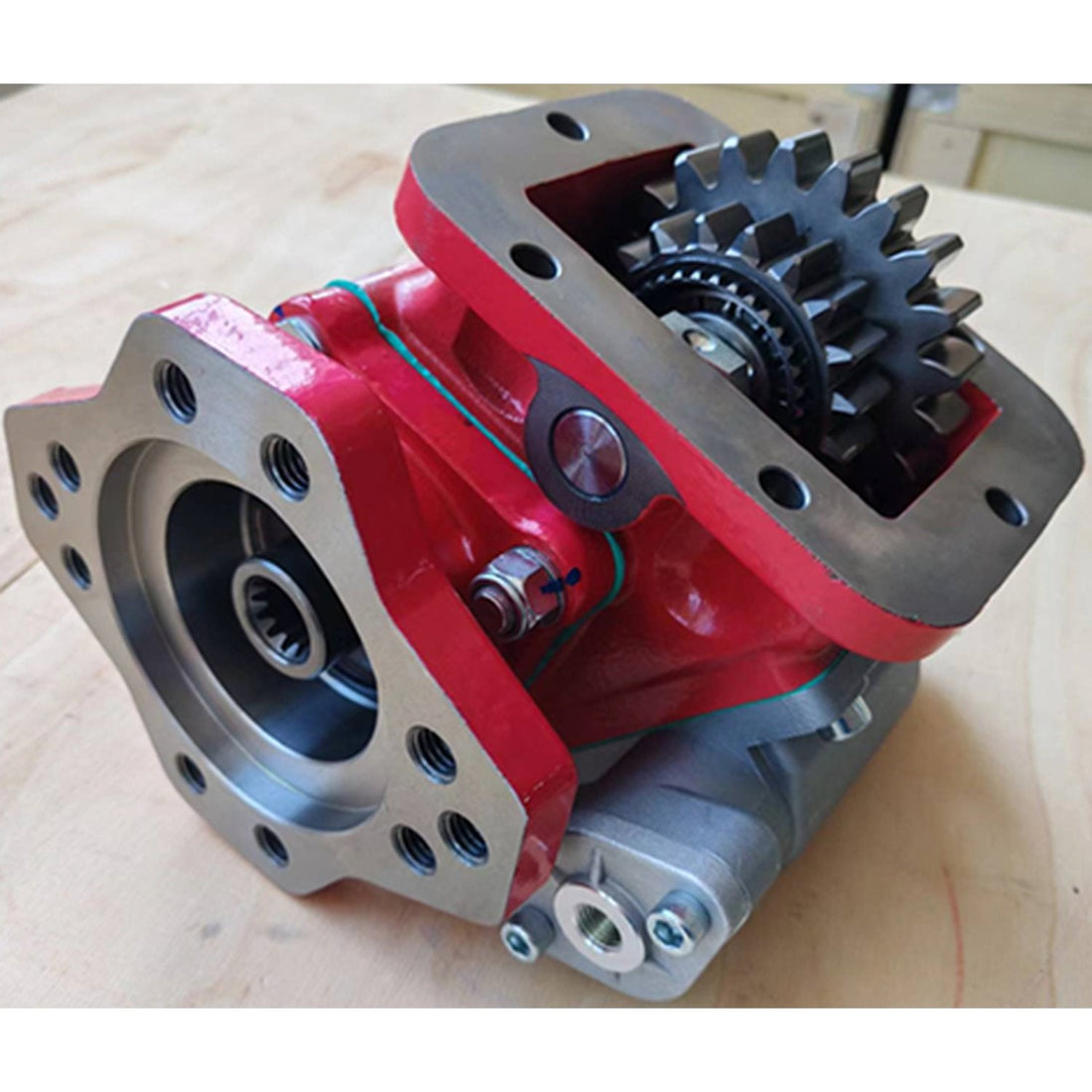

See the PTO 1000 series and PTO 2000 series assemblies, or view the full power take-off catalogue.
